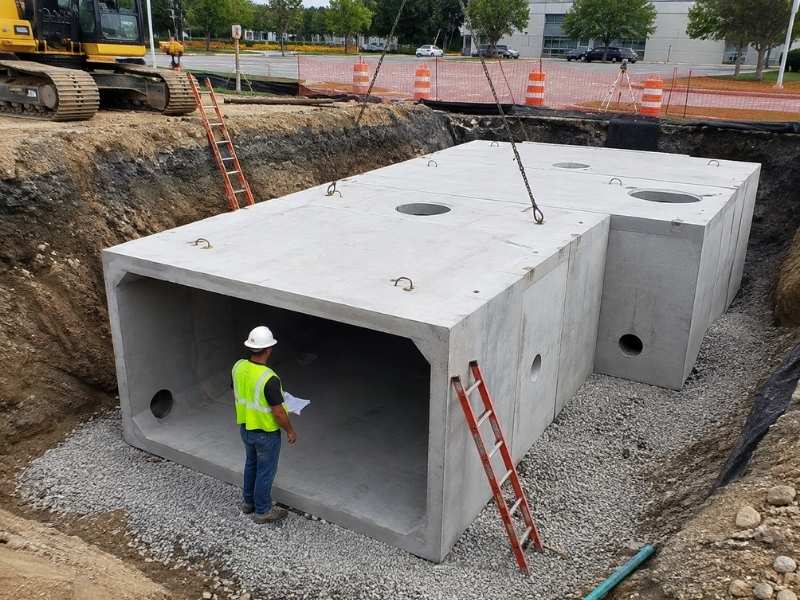

Some sites just don’t have room for an open stormwater pond. Once the parking, the building, and the required setbacks take up the lot, the rain still has to go somewhere. One answer is to store it underground in a large concrete box called a detention vault. Before that box goes in the ground, a professional engineer, or PE, reviews the whole design. What follows is what that review covers, and why each part matters for anyone buying, building, or developing a tight piece of land.
What a Professional Engineer Checks First on a Buried Vault
A professional engineer first confirms three things: the box can hold the water, carry the weight above it, and stay put when it’s empty. A buried box is a different animal than an open pond. You can’t see it, people drive over it, and groundwater presses on it from all sides. That changes how the PE looks at the design.
The review runs on three tracks at once:
- How water moves: how much the vault holds and how slowly it lets water out.
- How loads press down: the weight of soil and traffic on the lid and walls.
- How the empty vault behaves: what happens when it’s dry and the ground around it is wet.
The PE stamp is where responsibility lands. When an engineer signs and seals the plans, they’re taking legal ownership that the design meets code. In most states, work like this can’t be permitted without that seal. So the stamp isn’t a formality. It’s the point where a licensed person stands behind the numbers.
The Weight That Sits on Top of the Vault
The vault has to carry everything above it, from a few feet of soil to a loaded truck. When the vault sits under a drive aisle or parking lot, cars and trucks roll right over the lid. Because of that, the design uses a standard truck load, often the AASHTO HS-20 loading, so the lid and walls can take real traffic.
Soil cover depth changes the math too. More soil on top means more weight pushing down, which means thicker walls and a stronger lid. A vault buried deep is not the same design as one sitting near the surface. The PE checks the cover depth against the wall and lid thickness so the two match.
This is why a vault rated for a lawn is not rated for a loaded truck. A box built for a grassy yard can crack under a garbage truck or a fire engine. The rating has to fit the real use, not the easy case. The PE ties the design to how the space will actually get used.
When Groundwater Tries to Lift the Vault
An empty vault sitting in wet ground can float up like a boat. Water in the soil pushes up on the bottom of the box. When that upward push beats the weight of the empty vault, the vault can rise, crack its pipes, or break its own floor slab. Engineers call this flotation, and it’s one of the first things a PE looks for.
To hold the vault down, the PE may call for extra weight or anchors. That can mean a thicker bottom slab, a concrete collar around the base, or ties into the ground below. The goal is simple. Keep the vault heavier than the water trying to lift it, with a safety margin, often near 1.2 above the break-even point.
The high-water-table check happens before the design is approved, not after. The engineer looks at soil borings and groundwater readings from the site to see how high the water gets in a wet season. If the water sits high, the anchoring plan gets stronger. Skipping this check is how a good-looking vault ends up cracked a year later.
Storing the Same Water in a Smaller Footprint
A vault holds the same amount of water as a pond by going deep instead of wide. On a packed site, that’s the whole point. Tucking the storage under the parking lot frees up the surface for the uses that make the property work. The water is still there. It’s just out of sight and out of the way.
Letting that water out is a controlled process. An outlet control structure holds most of the storm back and releases it slowly through a small, sized opening. The PE sets that opening to a release rate the downstream pipes and creeks can handle. Get it wrong and the vault just hands the flood to the next property.
The PE also weighs concrete vaults against modular chamber systems. A reinforced concrete box is strong and easy to walk through and clean. Chamber systems can fit odd-shaped spaces and sometimes cost less, but they need careful cover and hold less water per foot of length. The engineer picks based on the site loads, the depth, and how crews will clean it out later.
Getting Inside the Vault After It Is Built
A vault needs safe ways in for cleaning and inspection, and the PE plans them before the first pour. Access ports, hatches, and manholes go into the design from the start, not as an afterthought. An underground vault is usually a permit-required confined space under OSHA rules. That means entry calls for air testing, ventilation, and a trained crew every time.
Sediment is the reason those openings matter. Dirt, sand, and grit settle on the floor of the vault ove
r the years. A sump or a small forebay near the inlet gives that grit a place to collect, which makes cleanout faster and cheaper. Without it, the whole floor turns into a slow, messy job.
Long-term inspection points keep the system working for the life of the property. Access risers let a crew check the outlet, the walls, and the water levels without digging anything up. A vault nobody can get into becomes a vault nobody maintains. The PE designs for the twentieth year, not just the first one.
Frequently Asked Questions
Can an underground detention vault sit under a building or parking lot?
Yes, as long as the box is built for the weight above it. A vault under parking has to take car and truck loads on its lid. A vault under a building has to carry that structure on top of it. The professional engineer confirms the vault’s rating matches how the space will really be used.
How is a vault different from an underground pipe or chamber system?
A vault is one large box, usually made of reinforced concrete. Pipe and chamber systems store the same water in rows of buried units instead. Each type handles loads, depth, and cleaning in its own way. The PE picks the one that fits the site and how crews will get in to maintain it.
Why would a PE reject a vault design that fits the site?
A design can fit the space and still fail the review. Common reasons are no flotation protection, a lid that can’t take the traffic above, or no real way to get in and clean it. Any one of those can send the plans back for changes. The professional engineer holds the design until those gaps are fixed.
